TOR-M2DT

The TOR-M2DT is a Russian-made short-range air defense missile system using the TOR-M2 missile launcher station. The system is especially designed to be used for Arctic region based on the chassis of the DT-30PM tracked all-terrain vehicle which consists of two tracked vehicle units linked by a steering mechanism.  The second vehicle is used to carried the TOR-M2 missile launcher station. The TOR-M2DT is developed by the Russia`s JSC Izhevsk Electromechanical Plant Kupol (a subsidiary of the Almaz-Antey Concern). In February 2017, it was announced that Russian defense contractor Tekhnodinamika is finalizing the development of a prototype transporter-loader for the Arctic derivative of the Tor (NATO reporting name: SA-15 Gauntlet) air defense missile system. According to the Company Tekhnodinamika, the Arctic version of the TOR short-range air defense missile system can be used for defending the polar military bases being set up in the Russian Arctic from Frantz Josef Land to Chukotka. The TOR-M2DT was revealed during the rehearsal for the Russian Victory Day Parade, in April 2017.

Variants:

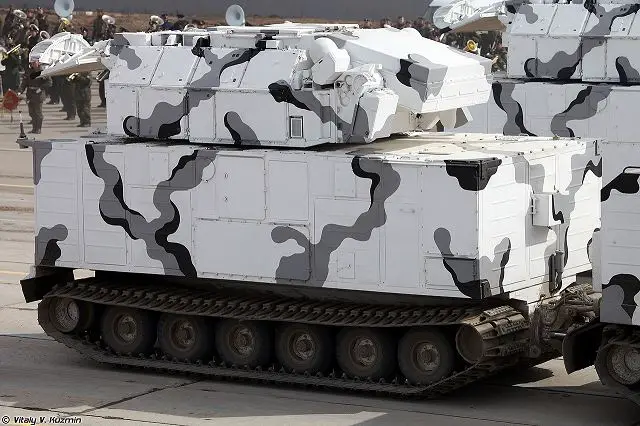

- Tor: with the 9M330 missile, minimum range 2 km (1.2 mi), introduced in 1986  - Tor-M1: NATO code SA-15 Gauntlet is the first version in the TOR air defense missile system family, 9M331 missile, minimum range 1.5 km (0.9 mi)  - TOR-M2: with the 9M331 missile and a new surveillance radar, minimum range 1 km (0.6 mi) - TOR-M2E: Export version of the TOR-M2  - TOR-M2U: an upgraded version of the TOR-M2, latest variant in service with the Russian armed forces. The TOR-M2U is equipped with a new battlefield missile system with better algorithms to recognize, classify and prioritize targets and able to engage four threats simultaneously.  - Tor-M2KM: anti-aircraft missile system with fighting vehicle using wheeled chassis. The Tor-M2KM weapon station can be mounted on truck chassis developed by the Belarusian enterprise «MZKT» or the Indian 2036C 6x6 TATA chassis. Technical Data The TOR-M2DT is fitted with a TOR-M2 missile launcher station mounted on the roof of the second vehicle of a DT-30PM-T1 all-terrain amphibious vehicle. The missile system is equipped with two 9M334 modules, each containing four 9M331 and 9M332 surface-to-air guided missiles in four transporting-launching containers which are used to store, transport and launch the missiles. The turret of the TOR-M2 also includes a 25 km 360° search radar mounted at the rear and 15 km 60° tracking radar at the front.  The TOR-M2DT is fitted with a TOR-M2 missile launcher station mounted on the roof of the second vehicle of a DT-30PM-T1 all-terrain amphibious vehicle Missile The TOR-M2 can firing the missile 9M331 and 9M332. The design of the missile round is similar conceptually to much earlier 9K33 / SA-8 Gecko, but with some important differences, both employing a simple tubular airframe design with a solid rocket powerplant. The airframe uses cruciform canard controls for pitch/yaw control, and a revolving sleeve mounts the cruciform tail surfaces. The missile is not roll stabilised. The controls are powered by compressed air. The most significant difference in the control system is the use of nose mounted thrust vectoring jets, used to pivot the missile to the desired azimuth and pitch angle after its vertical launch. Unlike its predecessor, this missile uses the vertical cold launch technique, with a charge ejecting the round vertically from the transport and launch canister. The proximity fuse transmit antenna is in the missile nose, which also contains the transmitter. The fuse receiver, command link receiver and autopilot are all clustered in the centre section of the missile. The warhead is situated between the guidance section and motor. A pair of command link and beacon antennas are mounted on the tail. Design and protection The TOR-M2DT is based on the chassis of the DT-30PM-T1 tracked articulated tractor (DT stands for ‘articulated tractor’ in Russian), an all-terrain vehicle which consists of two tracked vehicle units linked by a steering mechanism. The DT-30PM is especially designed to be used in the harsh climatic conditions of the Arctic region. The first vehicle of the DT-30PM is a tracked platform with water-displacing sealed all-welded body housing a crew cabin for 4 - 7 people equipped with autonomous heating and air ventilation systems, power plant, transmission and a cargo compartment located at the rear of the crew cab. The missiles launcher station is mounted on the roof of the second tracked chassis vehicle. The DT-30PM has a curb weight of 31,500 kg, a payload of 30,000 kg and a length of 16.08 m, width of 3.10 m and a height of 3.33 m. Close view of the front vehicle of the TOR-M2DT Mobility The TOR-M2DT uses the same chassis and powerpack as the standard DT-30PM. The vehicle is motorized with a V-shaped, 12-cylinder multi-fuel diesel engine YaMZ-847.10 developing 800 hp. The DT-30PM can run at a maximum road speed of 45 km/h with a maximum cruising range of 700 km. The DT-30PM can negotiate gradients up to 30° and slope of 15°. It can cross a trench of 4.5 m width and a vertical obstacle of 1.2 m. Combat use The TOR-M2 missile launcher station is able to engage to 48 processed targets and ten tracked targets. The missile can destroy air targets as aircraft, helicopters, cruise missiles, guided aerial missiles and bombs, unmanned air vehicles (UAV) flying at medium, low and extremely low altitudes in the heavy air and electronic countermeasures environment at a maximum range of 12 km at altitudes from 10 m to 1,000 m. Specifications  Type Short range air defense missile system Country users Russia Designer Country Russia Deployment time 10-12 targets a minute to 20 a Crew 3 soldiers Armament 8 missiles 9M331 or 9M332 Range missile 1,500 to 7,000 m Altitude missile 50 - 6,000 m Radar and command station M2E PESA engagement radar and Tor M2E search radar mounted to the turret. Dimensions vehicle Lenght: 16.08 m; Width: 3.10 m; Height: 3.33 m Details View  Technical Data Technical Data
